Double-Layer Explosion-Proof High and Low Temperature Environmental Test Chamber for Battery & Automotive Safety Testing

Nome da marca:	HeJin
Número do modelo:	HJ-EMTC-011
MOQ:	1 conjunto
preço:	Negotiatable
Condições de pagamento:	L/C,T/T
Capacidade de abastecimento:	10 conjuntos por mês

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

Third party calibration certificate(cost additional)

Dimensões da câmara interna:

500x600x500mm

Dimensões da câmara exterior:

1430x1750x1160mm

Material da parede externa:

Placa de aço carbono de alta qualidade

Material da parede interna:

Placa de aço inoxidável fosco SUS304 # de alta qualidade

Condensador:

Condensador de casco e tubo (resfriado a água)

Barulho:

≤70dB

Fonte de energia:

C.A. 380V±10% 50Hz

Poder:

≤ 15 kW

Detalhes da embalagem:

Madeira compensada

Destacar:

double-layer explosion-proof test chamber

high low temperature test chamber for batteries

automotive safety testing environmental chamber

Descrição do produto

Double-Layer Explosion-Proof High and Low Temperature Environmental Test Chamber

Designed for high-risk thermal testing scenarios, the Double-Layer Explosion-Proof High and Low Temperature Test Chamber by HeJin delivers uncompromising safety, temperature accuracy, and long-term stability. Built with a reinforced double-layer explosion-proof structure, this environmental test chamber is engineered to protect both operators and laboratories while ensuring reliable thermal cycling tests for batteries, automotive components, and industrial materials.

Key Features & Advantages

Double-Layer Explosion-Proof Structure: Reinforced inner and outer chambers reduce risk during battery thermal runaway or pressure-related incidents
Wide Temperature Range Control: Stable performance in both high and low temperature environments, suitable for long-duration and cycling tests
High-Precision Temperature Uniformity: Advanced airflow design ensures even temperature distribution across the test space
Intelligent Control System: Touchscreen controller with programmable test profiles, data logging, and fault alarms
Multi-Level Safety Protection: Includes over-temperature protection, pressure relief design, emergency stop, and alarm system

International Reference Standards

IEC 60068-2-1 – Test A: Cold
IEC 60068-2-2 – Test B: Dry Heat
IEC 60068-2-14 – Test N: Temperature Change
ISO 16750-4 – Road Vehicles – Climatic Loads
UL 1642 – Lithium Battery Safety Testing
UN 38.3 – Lithium Battery Transport Tests (Thermal Test Section)
GB/T 2423.1 & GB/T 2423.2 – Environmental Testing for Electrical Products

Technical Specifications

Test Items	Parameters
Model	HJ-EMTC-011
Temperature Range	-50℃~+150℃
Temperature Fluctuation	≤±0.5℃
Temperature Uniformity	≤±2℃ (9-point test)
Temperature Deviation	≤±2℃
Resolution Accuracy	0.01℃
Heating Rate	From -40℃ to +140℃ 3℃/min Linear (No load, ambient temperature +25℃)
Cooling Rate	From 80℃ to -40℃ 1℃/min Linear (No load, ambient temperature +25℃)

Applications

Lithium-ion battery thermal testing
EV battery module and pack safety validation
Automotive electronic components testing
Aerospace and rail transit components
Industrial materials aging and reliability testing
Research institutes and third-party laboratories

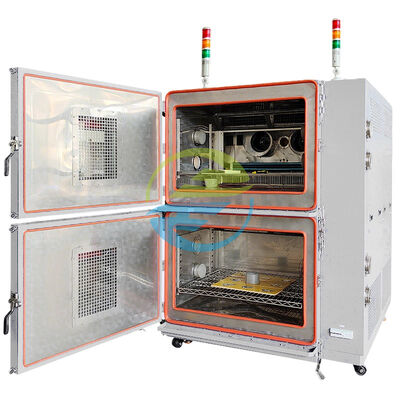

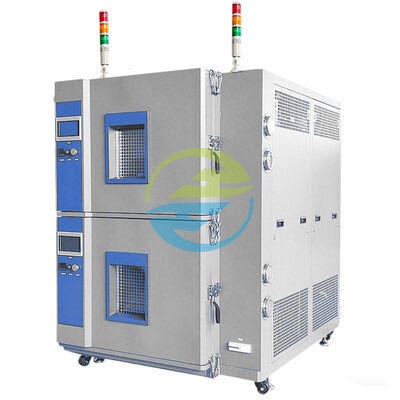

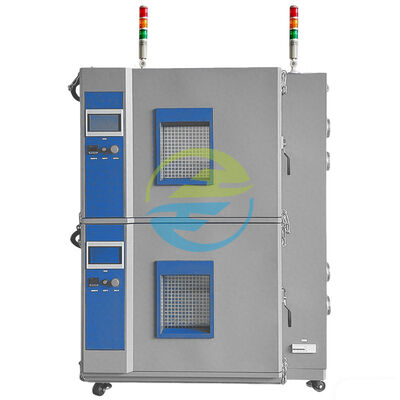

Product Images

Frequently Asked Questions

Is this chamber suitable for lithium battery safety testing?

Yes. The double-layer explosion-proof structure is specifically designed for high-risk battery thermal tests.

Can the temperature range be customized?

Absolutely. HeJin offers customized temperature ranges and chamber sizes.

Does it support long-term cycling tests?

Yes. The chamber is designed for continuous and long-duration thermal cycling.

What industries commonly use this chamber?

Automotive, EV battery manufacturing, energy storage, electronics, and research laboratories.

Are international standards supported?

The design references IEC, ISO, UL, UN, and GB standards.
